ICY DOCK Tray-less 4x 2.5" SATA/SAS SSD/HDD Hot-Swap Docking for 5.25" Bay

*Accommodates 4x 2.5" SAS/SATA SSD/HDD (5-9.5mm), with improved support for 7mm drives through a specialized stabilizing mechanism.
*Supports SATA 3.0 6Gbps or SAS 3.0 12Gbps (Single channel SAS, SAS host required)
*Fits any standard external 5.25" optical drive bay
*Tray-less and door-less architecture enables tool-free hot-swapping of bare drives
*Individual drive power button and a newly optimized drive ejection mechanism for reliable operation.

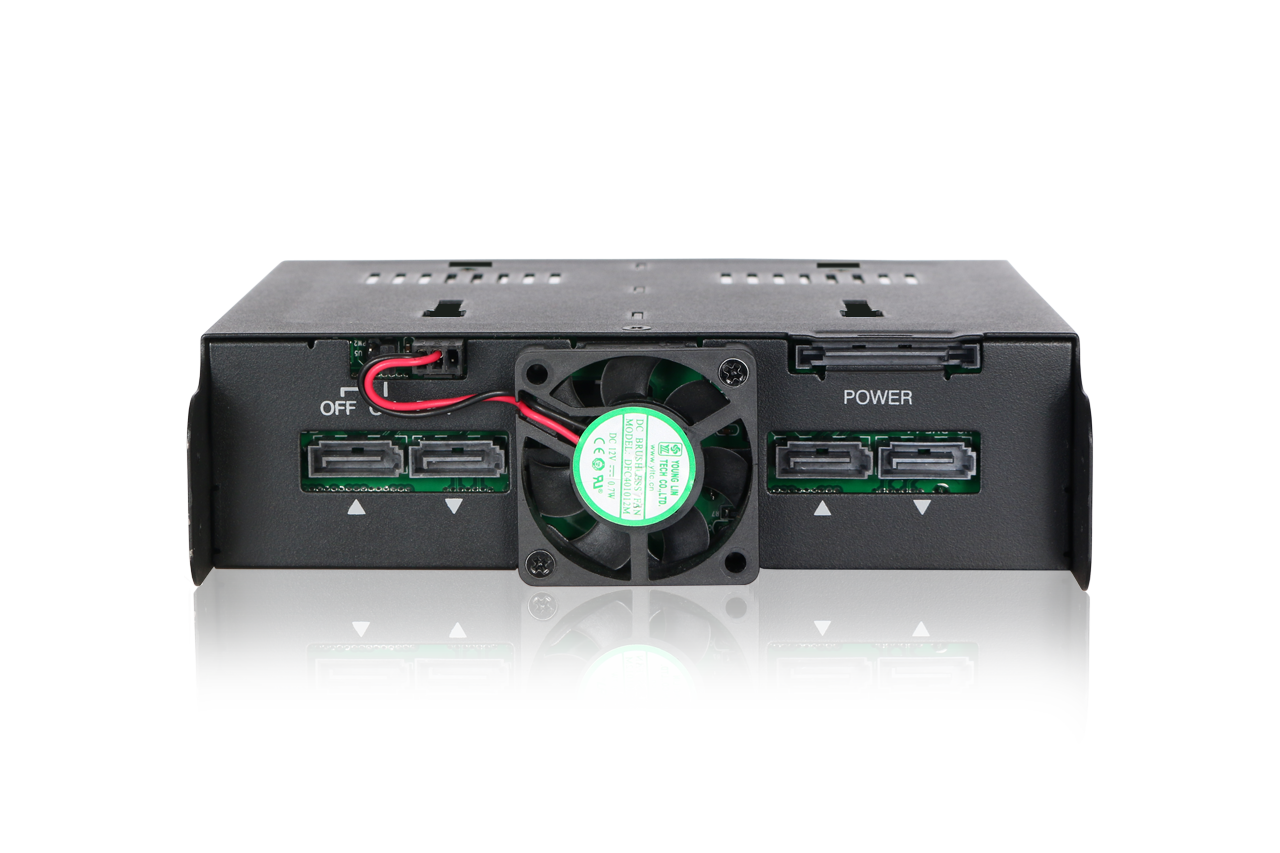

*High-performance 40mm cooling fan with adjustable speed control and on/off jumper for thermal management
*Supports SATA data and power cables with a locking latch design to ensure stable and secure connections
*A full metal chassis coupled with industrial ABS plastic provides comprehensive protection
*Comes with an industry-leading 3-year warranty against defects
*Offers complimentary access to professionally trained technical support agents

  • Product Details
  • Specification
  • Dimension Sheet
  • Related Products
  • Data Sheet

    • Product CodeMB014SP-B R1

    • Product NameICY DOCK Tray-less 4x 2.5" SATA/SAS SSD/HDD Hot-Swap Docking for 5.25" Bay

    • Base Weight(Kg)0.67

    • Length(Cm)13.9

    • Width(Cm)14.6

    • Height(Cm)4.13

    • Identity

    • Carton Length(Cm)

    • Carton Width(Cm)

    • Carton Height(Cm)
Item Number : MB014SP-B R1
Color : Black
Chipset : -
Internal Host : 4 x 7 pin SATA port
Power Connector : 15 pin SATA Power Connector
Drive Fit : 4 x 2.5" SATA/SAS HDD/SSD (Up to 9.5mm height)
Device Bay : 1 x 5.25"
Transfer Rate : SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps
Insert & Extract connection Via : Direct SATA/SAS hard drive connection
External Interface : -
Front Panel Contents : 4 LEDs
Structure : Plastic and Metal
Drive Cooling : Metal heat dispersion with passive cooling
LED/LCD Indication : Device Power & Drive Activity
LED/LCD Display Color : Solid Blue : Device Power, Flashing Blue : Drive Activity
Drive Security : -
RAID Function : -
Hot-Swap : Yes
RAID Setting : -
Dimension (L x W x H) (Cm) : 13.90 x 14.60 x 4.13
Weight (Kg) : 0.56
Buzzer Alarm : -
Operating System Support : Windows / Linux / MAC
Function Control Interface : -
Packing Content : Quick Installation Guide and Accessory Kit
HDD Capacity : No Limitation
Certifications : CE, RoHS, REACH
