ICY DOCK 2.5" U.2/U.3 NVMe SSD PCIe 4.0 Tray-less Enclosure for External 3.5" Drive Bay

*Supports 1x 2.5” U.2 NVMe PCIe 3.0/4.0 SSD (up to 15mm drive height)
*Uses 1x Slimline SAS (SFF-8654) connector, pin-out defined by SFF-9402 Rev 1.1
*Fits in 1x external 3.5" drive bay
*Compliant with PCIe 3.0/4.0 up to 64Gbps transfer speeds
*Heavy-Duty full-metal chassis with industrial-grade ABS plastic

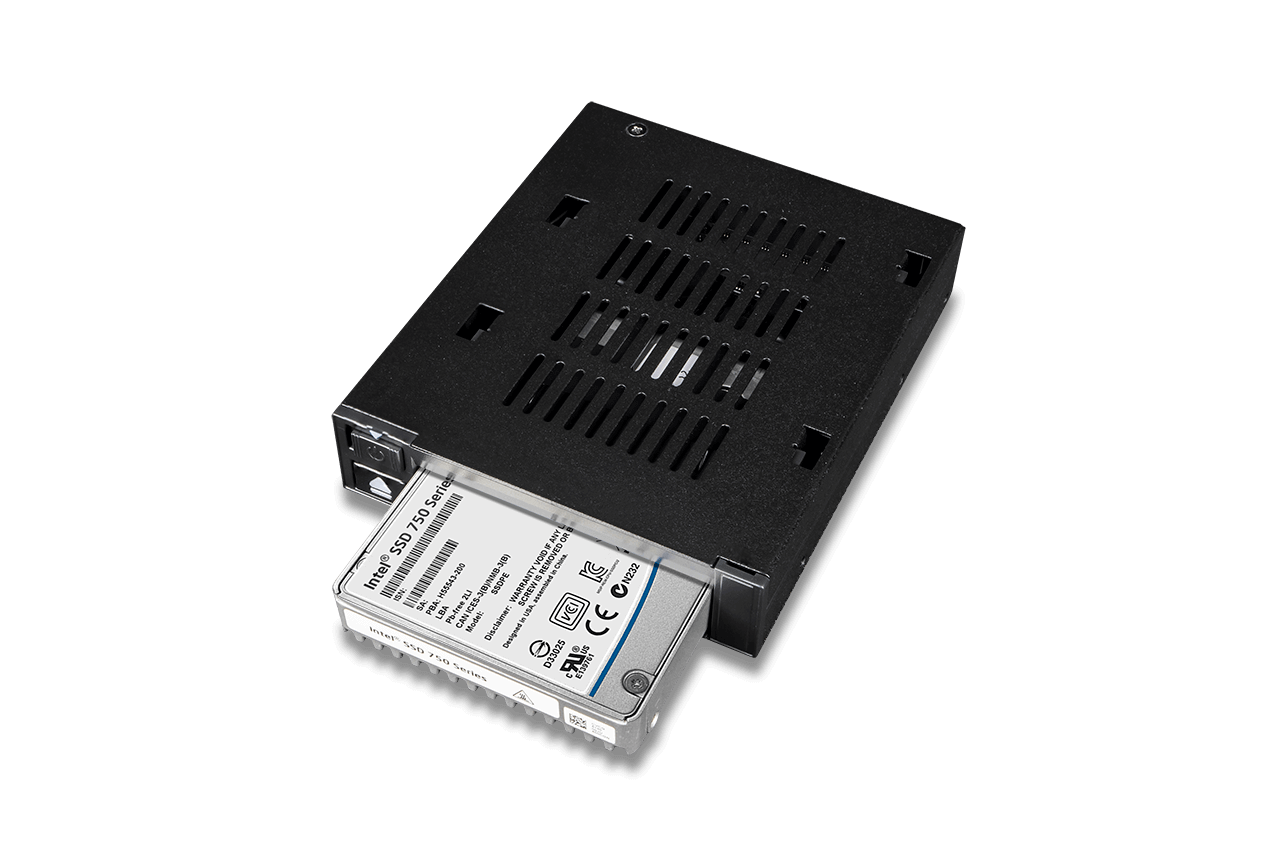

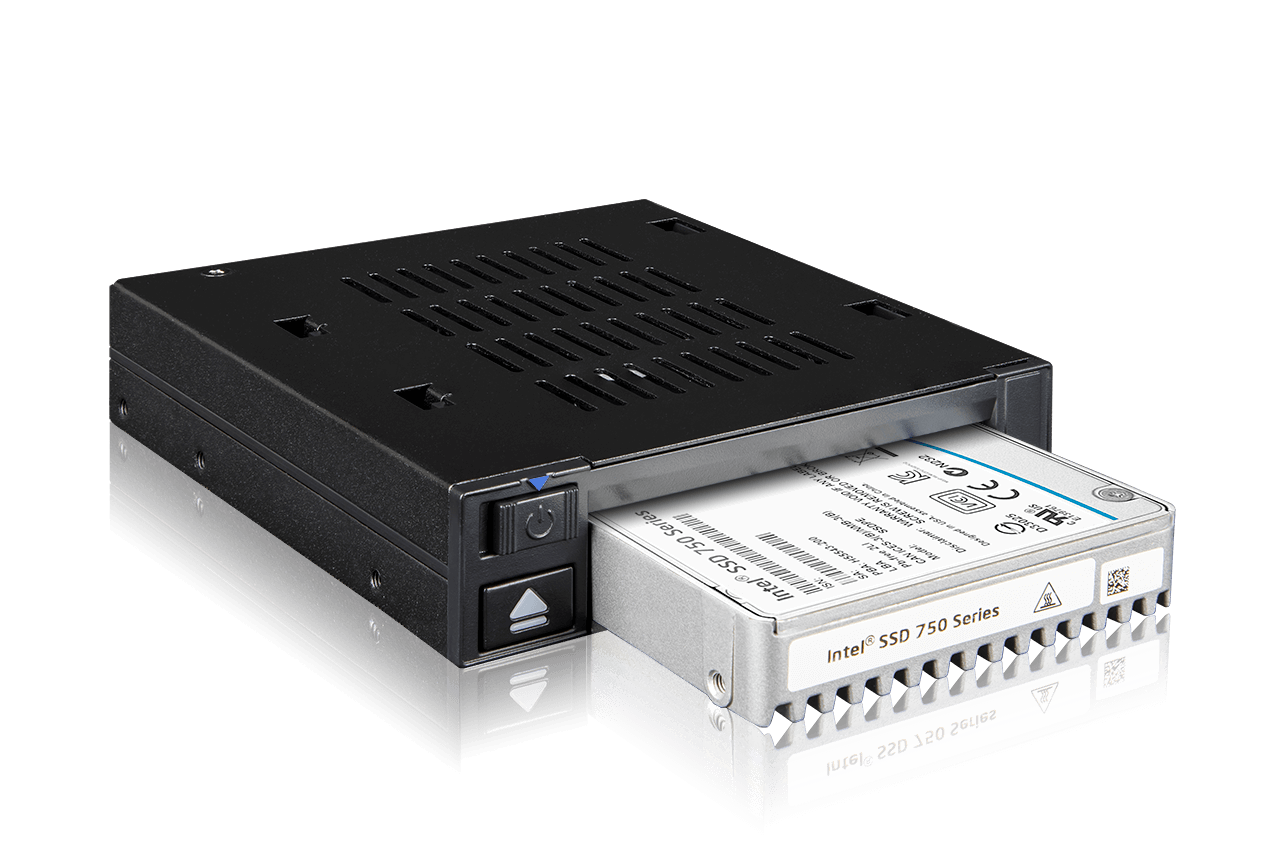

*Door-less and tray-less design for a quick bare drive swap

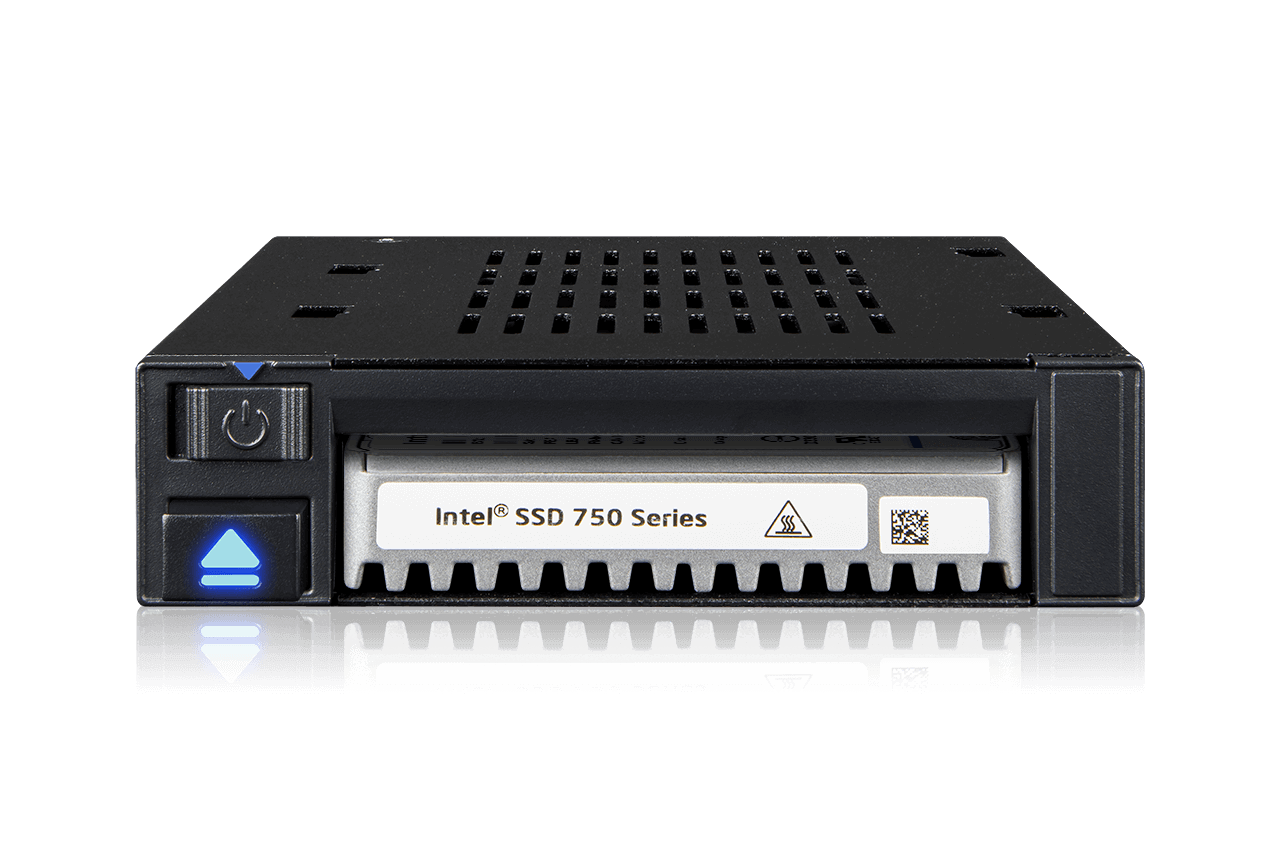

*Large individual drive ejection button built-in with cool blue drive activity LED
*Front accessible drive power switch


  • Product Details
  • Specification
  • Dimension Sheet
  • Related Products
  • Data Sheet

    • Product CodeMB021VP-B

    • Product NameICY DOCK 2.5" U.2/U.3 NVMe SSD PCIe 4.0 Tray-less Enclosure for External 3.5" Drive Bay

    • Base Weight(Kg)0.24

    • Length(Cm)10.16

    • Width(Cm)12.53

    • Height(Cm)2.54

    • Identity

    • Carton Length(Cm)

    • Carton Width(Cm)

    • Carton Height(Cm)
Item Number : MB021VP-B
Color : Black
Chipset : -
Internal Host : U.2
Power Connector : 15 pin SATA Power Connector
Drive Fit : 2.5" U.2 NVMe SSD
Device Bay : 1 x 3.5"
Transfer Rate : Up to 64Gbps (depending on SSD speed)
Insert & Extract connection Via : Direct SSD hard drive connection

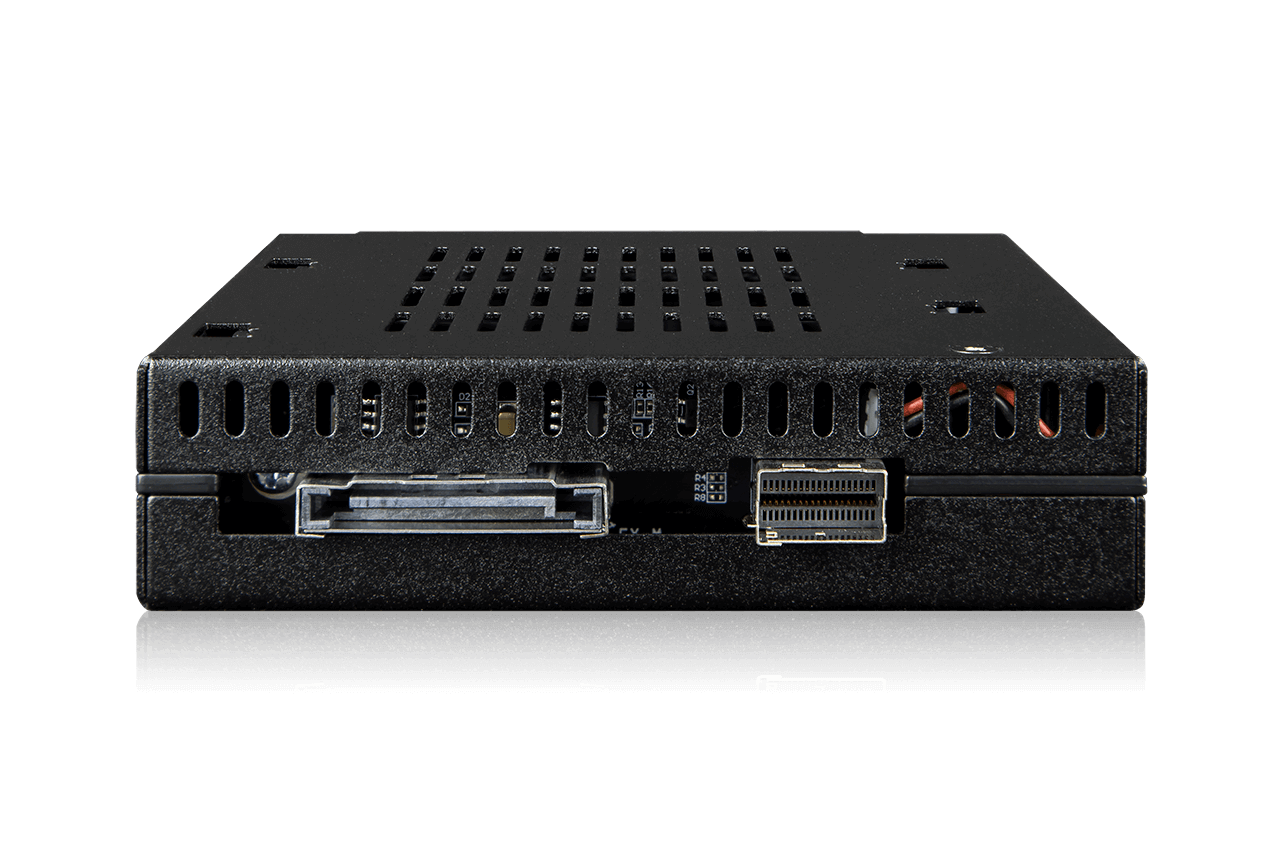

External Interface : 1 x SlimSAS SFF-8654 4i, pin-out defined by SFF-9402 Rev 1.1 (Tri-mode HBA/RAID card incompatible)
Front Panel Contents : 1 LEDs
Structure : Plastic and Metal
Drive Cooling : Metal heat dispersion with passive cooling
LED/LCD Indication : Device Power & Drive Activity
LED/LCD Display Color : Solid Blue : Device Power, Flashing Blue : Drive Activity
Drive Security : -
RAID Function : -
Hot-Swap : Yes
RAID Setting : -
Dimension (L x W x H) (Cm) : 12.53 x 10.16 x 2.54
Weight (Kg) : 0.29
Buzzer Alarm : -
Operating System Support : Windows / Linux / MAC
Function Control Interface : -
Packing Content : Quick Installation Guide and Accessory Kit
HDD Capacity : No Limitation
Certifications : CE, RoHS, REACH
