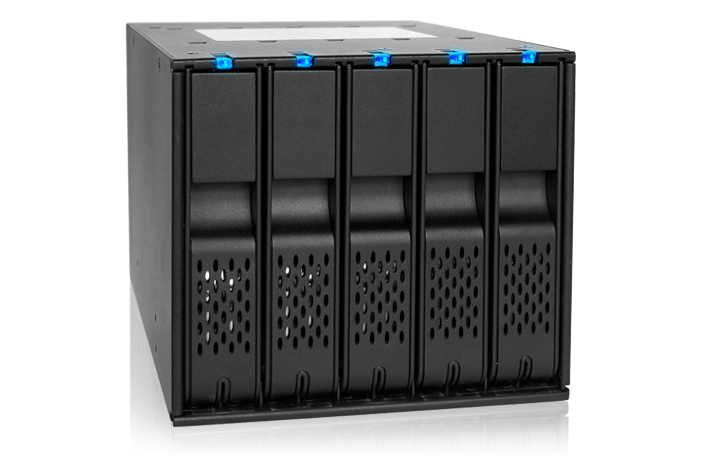

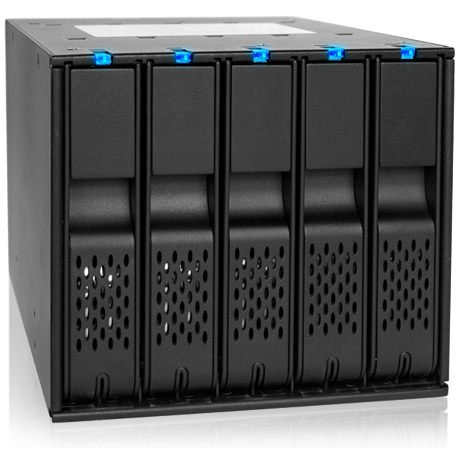

ICY DOCK Black Tray-less 5 Bay 3.5" SATA Hard Drive Hot Swap Backplane Cage in 3x 5.25" Bay

* Improved drive insertion mechanism ensures a sturdy connection and secures    hard drives in place
* Reinforced door latches for a secured locking mechanism

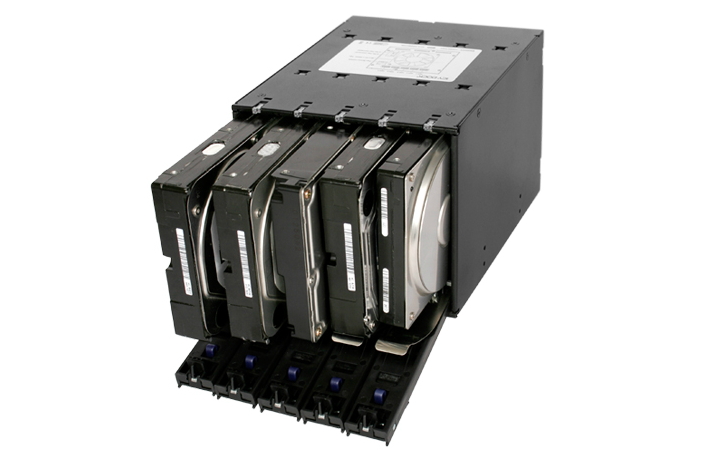

* Fits 5 x 3.5" SATA III HDD into 3 x external 5.25" bays.
* Compact and space saving design to fit multiple drives.
* Designed for consumers & enthusiasts gaming / media / server computer
  cases and servers.

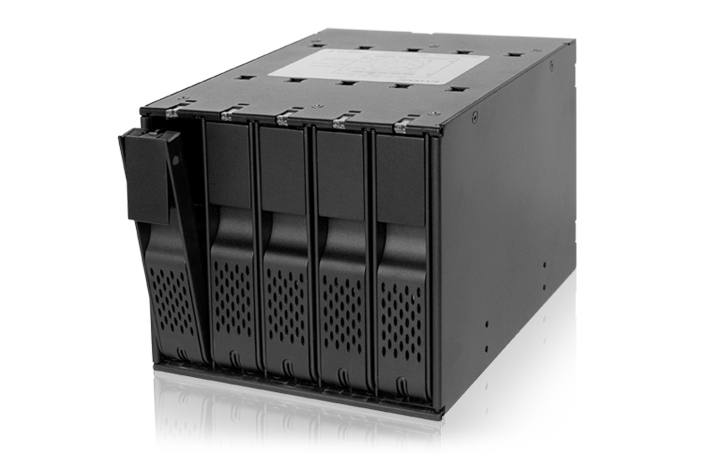

* Tray-less design for genuine plug & play and hot swap use.
* Front and rear ventilation slots.
* 80mm cooling fan for maximum air flow.
* 3 speed fan control, including auto setting featuring Smart Cooling
  Technology.
* Elegant full aluminum housing for durability and heat dissipation.

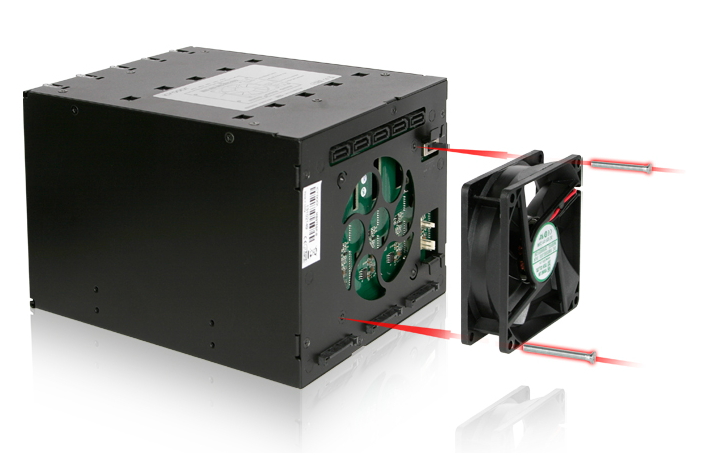

* Fan is replaceable with aftermarket fans that use standard 2-pin or 3-pin connectors.

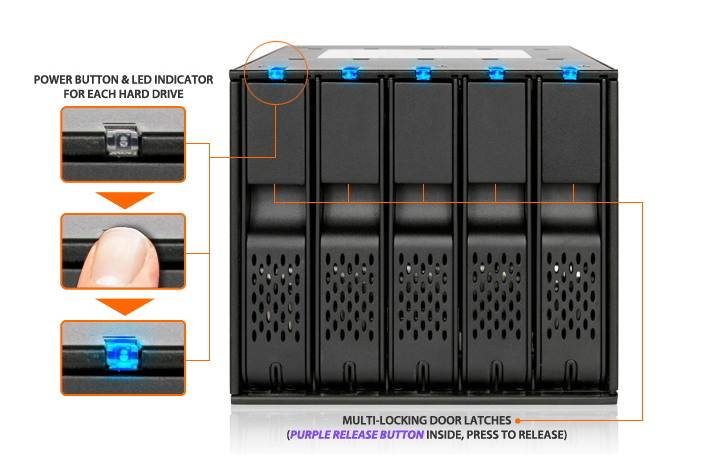

* Individual power switches and LEDs for each drive.
* Active Power Technology+ – cooling fan and drive only powers up when the child proof power buttons
  are pressed.
* Multi-locking aluminum door latches to prevent accidental drive ejection.
* ICY DOCK 3 year warranty equivalent to hard drive manufacturer warranty to ensure maximum reliability
  and long life.

  • Product Details
  • Specification
  • Dimension Sheet
  • Related Products
  • Data Sheet

    • Product CodeMB975SP-B R1

    • Product NameICY DOCK Black Tray-less 5 Bay 3.5" SATA Hard Drive Hot Swap Backplane Cage in 3x 5.25" Bay

    • Base Weight(Kg)1.39

    • Length(Cm)21

    • Width(Cm)14.6

    • Height(Cm)12.59

    • Identity

    • Carton Length(Cm)

    • Carton Width(Cm)

    • Carton Height(Cm)
Item Number : MB975SP-B R1
Color : Black
Chipset : -

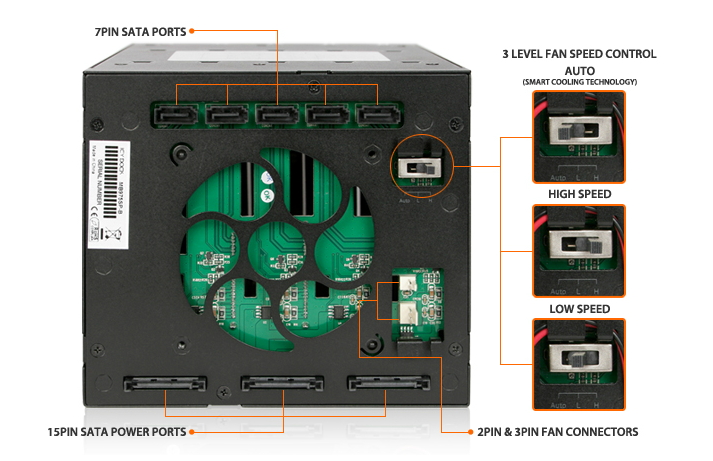

Internal Host : 7 pin SAS/SATA port
Power Connector : 15 pin SATA Power Connector x 3
Drive Fit : 5 x 3.5" SATA/SAS (Support Single Channel SAS) HDD
Device Bay : 3 x 5.25"
Transfer Rate : Up to 6 Gb/sec. (depending on hard drive speed)
Insert & Extract connection Via : Direct SATA hard drive connection
External Interface : -
Front Panel Contents : 5 Leds power button (Indicator)
Structure : Aluminum body w/ partial plastic
Drive Cooling : Removable rear outtake fan - 80mm ball bearing fan w/ 2 or 3 pin connector
LED/LCD Indication : Blue LED
LED/LCD Display Color : Flashing blue LED
Drive Security : -
RAID Function : -
Hot-Swap : YES
RAID Setting : -
Dimension (L x W x H) (Cm) : 21.00 x 14.60 x 12.59
Weight (Kg) : 1.39
Buzzer Alarm : -
Operating System Support : Windows / LinuxMac OS 9.0 or higher
Function Control Interface : -
Packing Content : Quick Installation Guide and Accessory Kit
HDD Capacity : Single HDD tested up to 4TB
Certifications : CE
